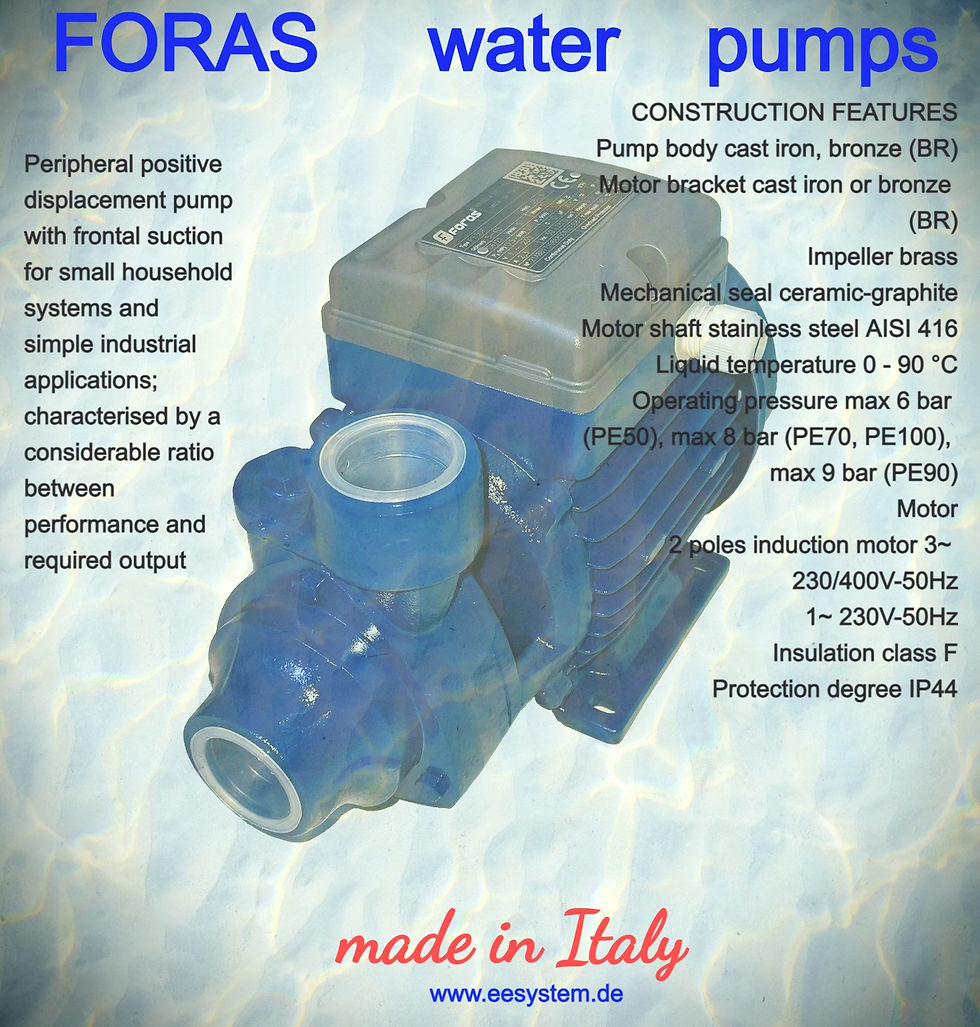

The Foras PE 100 is a reliable and versatile electric water pump suitable for a range of domestic use.

With the Foras PE100, you can be sure that your water is being pumped in the most efficient way possible. This peripheral positive displacement pump with frontal suction is suitable for small household systems and simple industrial applications. Characterized by a considerable ratio between performance and required to be output, they are suitable for domestic use, for example:
✔ for water distribution in combination with low pressure tanks;
✔ for irrigating gardens and orchards;
✔ for drawing water from tanks.
And for all those other situations where air or gas may be present in the pumped water.

In addition to its great performance, the PE 100 is also very easy to use. It has a very simple design, with only a single control valve, making it easy to use and maintain.



Suitable for use with clean water that does not contain abrasive particles and with liquids that are not chemically aggressive towards the materials of which the pump is made.



⚠ The installation must be carried out in well-ventilated closed rooms or in any case protected from the weather.



CONSTRUCTION FEATURES
P2: 0.74 kW
Q max: 3.0 [m3/h]
H max: 65  [m]


About PE-Series



✅ADVANTAGES
The generated pressure is 3–7 times greater (with the same wheel size and rotational speed).
A simpler pump design. Due to this, the repair/maintenance of vortex models is cheaper.
Less dependence of supply on the opposite pressure in the water supply.
Ability to transfer liquid saturated with gases.



❌DISADVANTAGES

Not self-priming. Self-priming option for P50A model only!!!
The first is a relatively low efficiency (up to 45% in operating mode).
The second is the inexpediency of using vortex units for pumping water containing abrasive fragments, since this leads to a drop in pressure, efficiency and rapid wear of the internal elements of the device.

PE100 - peripheral water pump (65m, 50 l/min, 230V) for home and garden

168,00 €Price
Excluding VAT |

DISCOUNT 25% straight from Factory

  • Construction Features  Option
    Pump body cast iron, bronze (BR)
    Motor bracket cast iron / bronze (BR)
    Impeller brass
    Mechanical seal ceramic-graphite/NBR
    Motor shaft stainless steel AISI 416
    Liquid temperature 0 - 90 °C
    Operating pressure max 8 bar
    Voltage 230 Volts
    Horsepower 1 H
    Flow rate 50 Litres Per Minute (3.0 m³/h)
    Rated current 5.2A



    Motor Option
    2 poles induction motor 1~ 230V-50Hz
    Insulation class F
    Protection degree IP44



    Product Dimensions 29 x 14 x 17 cm
    Item Weight 12 kgs
    Manufacturer PENTAX INDUSTRIES S.P.A. (Italy)
